Jumat, 20 Mei 2011

steric



Steric effects arise from the fact that each atom within a molecule occupies a certain amount of space. If atoms are brought too close together, there is an associated cost in energy due to overlapping electron clouds (Pauli or Born repulsion), and this may affect the molecule's preferred shape (conformation) and reactivity.

Types of steric effects

Steric hindrance

Steric hindrance or steric resistance occurs when the size of groups within a molecule prevents chemical reactions that are observed in related smaller molecules. Although steric hindrance is sometimes a problem (it prevents SN2 reactions with tertiary substrates from taking place), it can also be a very useful tool, and is often exploited by chemists to change the reactivity pattern of a molecule by stopping unwanted side-reactions (steric protection). Steric hindrance between adjacent groups can also restrict torsional bond angles. However, hyperconjugation has been suggested as an explanation for the preference of the staggered conformation of ethane because the steric hindrance of the small hydrogen atom is far too small. [1] [2] This is the effect responsible for the observed shape of rotaxanes.

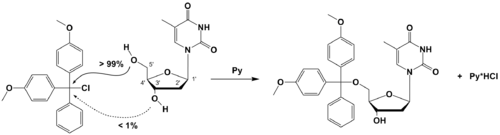

Regioselective dimethoxytritylation of the primary 5'-hydroxyl group of thymidine in the presence of a free secondary 3'-hydroxy group as a result of steric hindrance due to the dimethoxytrityl group and the ribose ring (Py = pyridine).[3]

Other types of steric effects

Steric shielding occurs when a charged group on a molecule is seemingly weakened or spatially shielded by less charged (or oppositely charged) atoms, including counterions in solution (Debye shielding). In some cases, for an atom to interact with sterically shielded atoms, it would have to approach from a vicinity where there is less shielding, thus controlling where and from what direction a molecular interaction can take place.
Steric attraction occurs when molecules have shapes or geometries that are optimized for interaction with one another. In these cases molecules will react with each other most often in specific arrangements.
Chain crossing: A chain, ring, or a set of rings cannot change from one conformation to another if it would require a chain (or ring - a ring is a cyclic chain) to pass through itself or another chain. This is responsible for the shape of catenanes and molecular knots.
Steric repulsions between different parts of molecular system were found of key importance to govern the direction of transition metal mediated transformations and catalysis. Steric effect can even induce a mechanism switch in the catalytic reaction.[4]

Steric effects vs. electronic effects

The structure, properties, and reactivity of a molecule is dependent on straight forward bonding interactions including covalent bonds, ionic bonds, hydrogen bonds and lesser forms of bonding. This bonding supplies a basic molecular skeleton that is modified by repulsive forces. These repulsive forces include the steric interactions described above. Basic bonding and steric are at times insufficient to explain many structures, properties, and reactivity. Thus steric effects are often contrasted and complemented by electronic effects implying the influence of effects such as induction, conjunction, orbital symmetry, electrostatic interactions, and spin state. There are more esoteric electronic effects but these are among the most important when considering structure and chemical reactivity.
A special computational procedure was developed to separate electronic and steric effects of an arbitrary group in the molecule and to reveal their influence on structure and reactivity.[5]

Significance

Understanding steric effects is critical to chemistry, biochemistry and pharmacology. In chemistry, steric effects are nearly universal and affect the rates and energies of most chemical reactions to varying degrees. In biochemistry, steric effects are often exploited in naturally occurring molecules such as enzymes, where the catalytic site may be buried within a large protein structure. In pharmacology, steric effects determine how and at what rate a drug will interact with its target bio-molecules.

stereo alkane

Alkane conformers arise from rotation around sp3 hybridised carbon carbon sigma bonds. The smallest alkane with such a chemical bond, ethane, exists as an infinite number of conformations with respect to rotation around the C–C bond. Two of these are recognised as energy minimum (staggered conformation) and energy maximum (eclipsed conformation) forms. The existence of specific conformations is due to hindered rotation around sigma bonds, although a role for hyperconjugation is proposed by a competing theory.

The importance of energy minimum and energy maximum is seen by extension of these concepts to more complex molecules for which stable conformations may be predicted as minimum energy forms. The determination of stable conformations has also played a large role in the establishment of the concept of asymmetric induction and the ability to predict the stereochemistry of reactions controlled by steric effects.

In the example of staggered ethane in Newman projection, a hydrogen atom on one carbon atom has a 60° torsional angle or torsion angle [1] with respect to the nearest hydrogen atom on the other carbon so that steric hindrance is minimised. The staggered conformation is more stable by 12.5 kJ/mol than the eclipsed conformation, which is the energy maximum for ethane. In the eclipsed conformation the torsional angle is minimized.

staggered conformation left, eclipsed conformation right in Newman projection
Ethane-staggered-depth-cue-3D-balls.png Ethane-eclipsed-depth-cue-3D-balls.png

In butane, the two staggered conformations are no longer equivalent and represent two distinct conformers:the anti-conformation (left-most, below) and the gauche conformation (right-most, below).

anti vs gauche conformations
Butane-anti-side-3D-balls.pngButane-eclipsed-side-3D-balls.pngButane-negative-gauche-side-3D-balls.png

Both conformations are free of torsional strain, but, in the gauche conformation, the two methyl groups are in closer proximity than the sum of their van der Waals radii. The interaction between the two methyl groups is repulsive (van der Waals strain), and an energy barrier results.

A measure of the potential energy stored in butane conformers with greater steric hindrance than the 'anti'-conformer ground state is given by these values[2]:

  • Gauche, conformer - 3.8 kJ/mol
  • Eclipsed H and CH3 - 16 kJ/mol
  • Eclipsed CH3 and CH3 - 19 kJ/mol.

The eclipsed methyl groups exert a greater steric strain because of their greater electron density compared to lone hydrogen atoms.

Relative energies of conformations of butane with respect to rotation of the central C-C bond.

The textbook explanation for the existence of the energy maximum for an eclipsed conformation in ethane is steric hindrance, but, with a C-C bond length of 154 pm and a Van der Waals radius for hydrogen of 120 pm, the hydrogen atoms in ethane are never in each other's way. The question of whether steric hindrance is responsible for the eclipsed energy maximum is a topic of debate to this day. One alternative to the steric hindrance explanation is based on hyperconjugation as analyzed within the Natural Bond Orbital framework.[3][4][5] In the staggered conformation, one C-H sigma bonding orbital donates electron density to the antibonding orbital of the other C-H bond. The energetic stabilization of this effect is maximized when the two orbitals have maximal overlap, occurring in the staggered conformation. There is no overlap in the eclipsed conformation, leading to a disfavored energy maximum. On the other hand, an analysis within quantitative molecular orbital theory shows that 2-orbital-4-electron (steric) repulsions are dominant over hyperconjugation.[6] A valence bond theory study also emphasizes the importance of steric effects.[7]

[edit] Definitions

Many definitions that describe a specific conformation (IUPAC Gold Book) exist:

  • a torsion angle of ±60° is called gauche [8]
  • a torsion angle between 0° and ± 90° is called syn (s)
  • a torsion angle between ± 90° and 180° is called anti (a)
  • a torsion angle between 30° and 150° or between –30° and –150° is called clinal
  • a torsion angle between 0° and 30° or 150° and 180° is called periplanar (p)
  • a torsion angle between 0° to 30° is called synperiplanar or syn- or cis-conformation (sp)
  • a torsion angle between 30° to 90° and –30° to –90° is called synclinal or gauche or skew (sc)[9]
  • a torsion angle between 90° to 150°, and –90° to –150° is called anticlinal (ac)
  • a torsion angle between ± 150° to 180° is called antiperiplanar or anti or trans (ap).
syn/anti peri/clinal

Any strain resulting from torsion is also called Pitzer Strain[10] or eclipsing strain.

Kamis, 19 Mei 2011

In organic chemistry, functional groups are specific groups of atoms within molecules that are responsible for the characteristic chemical reactions of those molecules. The same functional group will undergo the same or similar chemical reaction(s) regardless of the size of the molecule it is a part of.[1][2] However, its relative reactivity can be modified by nearby functional groups.

The word moiety (pronounced /ˈmɔɪti/) is often used synonymously to "functional group," but, according to the IUPAC definition,[3] a moiety is a part of a molecule that may include functional groups as substructures. For example, an ester is a functional group composed of an alcohol moiety and an acyl moiety. Also, it may be divided into carboxylate and alkyl moieties. Each moiety may carry any number of functional groups, for example, methyl parahydroxybenzoate carries a phenol functional group in the acyl moiety.

Combining the names of functional groups with the names of the parent alkanes generates a powerful systematic nomenclature for naming organic compounds.

The atoms of functional groups are linked to each other and to the rest of the molecule by covalent bonds. When the group of atoms is associated with the rest of the molecule primarily by ionic forces, the group is referred to more properly as a polyatomic ion or complex ion. And all of these are called radicals, by a meaning of the term radical that predates the free radical.

The first carbon atom after the carbon that attaches to the functional group is called the alpha carbon; the second, beta carbon, the third, gamma carbon, etc. If there is another functional group at a carbon, it may be named with the Greek letter, e.g., the gamma-amine in gamma-aminobutanoic acid is on the third carbon of the carbon chain attached to the carboxylic acid group.


Synthetic chemistry

Organic reactions are facilitated and controlled by the functional groups of the reactants. In general, alkyls are unreactive and difficult to get to react selectively at the desired positions, with few exceptions. In contrast, unsaturated carbon functional groups, and carbon-oxygen and carbon-nitrogen functional groups have a more diverse array of reactions that are also selective. It may be necessary to create a functional group in the molecule to make it react. For example, to synthesize iso-octane (the 8-carbon ideal gasoline) from the unfunctionalized alkane isobutane (a 4-carbon gas), isobutane is first dehydrogenated into isobutene. This contains the alkene functional group and can now dimerize with another isobutene to give iso-octene, which is then catalytically hydrogenated to iso-octane using pressured hydrogen gas.

Crystallography

The International Union of Crystallography in its Crystallographic Information File dictionary defines "moiety" to represent discrete non-bonded components. Thus Na2SO4 would contain 3 moieties (2 Na+ and one SO42-). The dictionary defines "chemical formula moiety": "Formula with each discrete bonded residue or ion shown as a separate moiety".

Functionalization

Functionalization is the addition of functional groups onto the surface of a material by chemical synthesis methods. The functional group added can be subjected to ordinary synthesis methods to attach virtually any kind of organic compound onto the surface.

Functionalization is employed for surface modification of industrial materials in order to achieve desired surface properties such as water repellent coatings for automobile windshields and non-biofouling, hydrophilic coatings for contact lenses. In addition, functional groups are used to covalently link functional molecules to the surface of chemical and biochemical devices such as microarrays and microelectromechanical systems.

Catalysts can be attached to a material that has been functionalized. For example, silica is functionalized with an alkyl silicone, wherein the alkyl contains an amine functional group. A ligand such as an EDTA fragment is synthesized onto the amine, and a metal cation is complexed into the EDTA fragment. The EDTA is not adsorbed onto the surface, but connected by a permanent chemical bond.

Functional groups are also used to covalently link molecules such as fluorescent dyes, nanoparticles, proteins, DNA, and other compounds of interest for a variety of applications such as sensing and basic chemical research.

Table of common functional groups

The following is a list of common functional groups. In the formulas, the symbols R and R' usually denote an attached hydrogen, or a hydrocarbon side chain of any length, but may sometimes refer to any group of atoms.

Hydrocarbons

Functional groups, called hydrocarbyls, that contain only carbon and hydrogen, but vary in the number and order of π bonds. Each one differs in type (and scope) of reactivity.

Chemical class Group Formula Structural Formula Prefix Suffix Example
Alkane Alkyl RH Alkyl alkyl- -ane methane
Ethane
Alkene Alkenyl R2C=CR2 Alkene alkenyl- -ene ethylene
Ethylene
(Ethene)
Alkyne Alkynyl RC≡CR' Alkyne alkynyl- -yne acetylene
Acetylene
(Ethyne)
Benzene derivative Phenyl RC6H5
RPh
Phenyl phenyl- -benzene Cumene
Cumene
(2-phenylpropane)
Toluene derivative Benzyl RCH2C6H5
RBn
Benzyl benzyl- 1-(substituent)toluene Benzyl bromide
Benzyl bromide
(1-Bromotoluene)

There are also a large number of branched or ring alkanes that have specific names, e.g., tert-butyl, bornyl, cyclohexyl, etc.

Hydrocarbons may form charged structures: positively charged carbocations or negative carbanions. Carbocations are often named -um. Examples are tropylium and triphenylmethyl cations and the cyclopentadienyl anion.

Groups containing halogens

Haloalkanes are a class of molecule that is defined by a carbon-halogen bond. This bond can be relatively weak (in the case of an iodoalkane) or quite stable (as in the case of a fluoroalkane). In general, with the exception of fluorinated compounds, haloalkanes readily undergo nucleophilic substitution reactions or elimination reactions. The substitution on the carbon, the acidity of an adjacent proton, the solvent conditions, etc. all can influence the outcome of the reactivity.

Chemical class Group Formula Structural Formula Prefix Suffix Example
haloalkane halo RX Halide group halo- alkyl halide Chloroethane
Chloroethane
(Ethyl chloride)
fluoroalkane fluoro RF Fluoro group fluoro- alkyl fluoride Fluoromethane
Fluoromethane
(Methyl fluoride)
chloroalkane chloro RCl Chloro group chloro- alkyl chloride Chloromethane
Chloromethane
(Methyl chloride)
bromoalkane bromo RBr Bromo group bromo- alkyl bromide Bromomethane
Bromomethane
(Methyl bromide)
iodoalkane iodo RI Iodo group iodo- alkyl iodide Iodomethane
Iodomethane
(Methyl iodide)

Groups containing oxygen

Compounds that contain C-O bonds each possess differing reactivity based upon the location and hybridization of the C-O bond, owing to the electron-withdrawing effect of sp hybridized oxygen (carbonyl groups) and the donating effects of sp2 hybridized oxygen (alcohol groups).

Chemical class Group Formula Structural Formula Prefix Suffix Example
Alcohol Hydroxyl ROH Hydroxyl hydroxy- -ol methanol
Methanol
Ketone Carbonyl RCOR' Ketone -oyl- (-COR')
or
oxo- (=O)
-one Butanone
Butanone
(Methyl ethyl ketone)
Aldehyde Aldehyde RCHO Aldehyde formyl- (-COH)
or
oxo- (=O)
-al acetaldehyde
Ethanal
(Acetaldehyde)
Acyl halide Haloformyl RCOX Acyl halide carbonofluoridoyl-
carbonochloridoyl-
carbonobromidoyl-
carbonoiodidoyl-
-oyl halide Acetyl chloride
Acetyl chloride
(Ethanoyl chloride)
Carbonate Carbonate ester ROCOOR Carbonate (alkoxycarbonyl)oxy- alkyl carbonate triphosgene
Triphosgene
(Di(trichloromethyl) carbonate)
Carboxylate Carboxylate RCOO Carboxylate

Carboxylate

carboxy- -oate Sodium acetate
Sodium acetate
(Sodium ethanoate)
Carboxylic acid Carboxyl RCOOH Carboxylic acid carboxy- -oic acid Acetic acid
Acetic acid
(Ethanoic acid)
Ester Ester RCOOR' Ester alkanoyloxy-
or
alkoxycarbonyl
alkyl alkanoate Ethyl butyrate
Ethyl butyrate
(Ethyl butanoate)
Hydroperoxide Hydroperoxy ROOH Hydroperoxy hydroperoxy- alkyl hydroperoxide Methyl ethyl ketone peroxide
Methyl ethyl ketone peroxide
Peroxide Peroxy ROOR Peroxy peroxy- alkyl peroxide Di-tert-butyl peroxide
Di-tert-butyl peroxide
Ether Ether ROR' Ether alkoxy- alkyl ether Diethyl ether
Diethyl ether
(Ethoxyethane)
Hemiacetal Hemiacetal RCH(OR')(OH) Hemiacetal alkoxy -ol -al alkyl hemiacetal
Hemiketal Hemiketal RCH(ORʺ)(OH)R' Hemiketal alkoxy -ol -one alkyl hemiketal
Acetal Acetal RCH(OR')(OR") Acetal dialkoxy- -al dialkyl acetal
Ketal Ketal RCH(ORʺ)(OR‴)R' Ketal dialkoxy- -one dialkyl ketal
Orthoester Orthoester RC(OR')(ORʺ)(OR‴) Orthoester trialkoxy-

Orthocarbonate ester Orthocarbonate ester C(OR)(OR')(ORʺ)(OR″)
tetralkoxy- tetraalkyl orthocarbonate

Groups containing nitrogen

Compounds that contain nitrogen in this category may contain C-O bonds, such as in the case of amides.

Chemical class Group Formula Structural Formula Prefix Suffix Example
Amide Carboxamide RCONR2 Amide carboxamido-
or
carbamoyl-
-amide acetamide
Acetamide
(Ethanamide)
Amines Primary amine RNH2 Primary amine amino- -amine methylamine
Methylamine
(Methanamine)
Secondary amine R2NH Secondary amine amino- -amine dimethylamine
Dimethylamine
Tertiary amine R3N Tertiary amine amino- -amine trimethylamine
Trimethylamine
4° ammonium ion R4N+ Quaternary ammonium cation ammonio- -ammonium choline
Choline
Imine Primary ketimine RC(=NH)R' Imine imino- -imine
Secondary ketimine RC(=NR)R' Imine imino- -imine
Primary aldimine RC(=NH)H Imine imino- -imine
Secondary aldimine RC(=NR')H Imine imino- -imine
Imide Imide RC(=O)NC(=O)R' Imide imido- -imide
Azide Azide RN3 Organoazide azido- alkyl azide Phenyl azide
Phenyl azide
(Azidobenzene)
Azo compound Azo
(Diimide)
RN2R' Azo.pngl azo- -diazene Methyl orange
Methyl orange
(p-dimethylamino-azobenzenesulfonic acid)
Cyanates Cyanate ROCN Cyanate cyanato- alkyl cyanate Methyl cyanate
Methyl cyanate
Isocyanate RNCO Isocyanate isocyanato- alkyl isocyanate Methyl isocyanate
Methyl isocyanate
Nitrate Nitrate RONO2 Nitrate nitrooxy-, nitroxy-

alkyl nitrate

Amyl nitrate
Amyl nitrate
(1-nitrooxypentane)
Nitrile Nitrile RCN Nitrile cyano- alkanenitrile
alkyl cyanide
Benzonitrile
Benzonitrile
(Phenyl cyanide)
Isonitrile RNC Isocyanide isocyano- alkaneisonitrile
alkyl isocyanide
Methyl isocyanide
Methyl isocyanide
Nitrite Nitrosooxy RONO Nitrite nitrosooxy-

alkyl nitrite

Amyl nitrite
Isoamyl nitrite
(3-methyl-1-nitrosooxybutane)
Nitro compound Nitro RNO2 Nitro nitro- Nitromethane
Nitromethane
Nitroso compound Nitroso RNO Nitroso nitroso- Nitrosobenzene
Nitrosobenzene
Pyridine derivative Pyridyl RC5H4N

4-pyridyl group
3-pyridyl group
2-pyridyl group

4-pyridyl
(pyridin-4-yl)

3-pyridyl
(pyridin-3-yl)

2-pyridyl
(pyridin-2-yl)

-pyridine Nicotine
Nicotine

Groups containing sulfur

Compounds that contain sulfur exhibit unique chemistry due to their ability to form more bonds than oxygen, their lighter analogue on the periodic table. Substitutive nomenclature (marked as prefix in table) is preferred over functional class nomenclature (marked as suffix in table) for sulfides, disulfides, sulfoxides and sulfones.

Chemical class Group Formula Structural Formula Prefix Suffix Example
Thiol Sulfhydryl RSH Sulfhydryl sulfanyl-
(-SH)
-thiol Ethanethiol
Ethanethiol
Sulfide
(Thioether)
Sulfide RSR' Sulfide group substituent sulfanyl-
(-SR')
di(substituent) sulfide
Dimethyl sulfide

(Methylsulfanyl)methane (prefix) or
Dimethyl sulfide (suffix)
Disulfide Disulfide RSSR' Disulfide substituent disulfanyl-
(-SSR')
di(substituent) disulfide
Dimethyl disulfide

(Methyldisulfanyl)methane (prefix) or
Dimethyl disulfide (suffix)
Sulfoxide Sulfinyl RSOR' Sulfinyl group -sulfinyl-
(-SOR')
di(substituent) sulfoxide DMSO
(Methanesulfinyl)methane (prefix) or
Dimethyl sulfoxide (suffix)
Sulfone Sulfonyl RSO2R' Sulfonyl group -sulfonyl-
(-SO2R')
di(substituent) sulfone Dimethyl sulfone
(Methanesulfonyl)methane (prefix) or
Dimethyl sulfone (suffix)
Sulfinic acid Sulfino RSO2H Sulfinic-acid-2D.png sulfino-
(-SO2H)
-sulfinic acid Hypotaurine
2-Aminoethanesulfinic acid
Sulfonic acid Sulfo RSO3H Sulfonyl group sulfo-
(-SO3H)
-sulfonic acid Benzenesulfonic acid
Benzenesulfonic acid
Thiocyanate Thiocyanate RSCN Thiocyanate thiocyanato-
(-SCN)
substituent thiocyanate Phenyl thiocyanate
Phenyl thiocyanate
Isothiocyanate RNCS Isothiocyanate isothiocyanato-
(-NCS)
substituent isothiocyanate Allyl isothiocyanate
Allyl isothiocyanate
Thione Carbonothioyl RCSR' Thione -thioyl-
(-CSR')
or
sulfanylidene-
(=S)
-thione Diphenylmethanethione
Diphenylmethanethione
(Thiobenzophenone)
Thial Carbonothioyl RCSH Thial methanethioyl-
(-CSH)
or
sulfanylidene-
(=S)
-thial

Groups containing phosphorus

Compounds that contain phosphorus exhibit unique chemistry due to their ability to form more bonds than nitrogen, their lighter analogues on the periodic table.

Chemical class Group Formula Structural Formula Prefix Suffix Example
Phosphine
(Phosphane)
Phosphino R3P A tertiary phosphine phosphanyl- -phosphane Methylpropylphosphane
Methylpropylphosphane
Phosphonic acid Phosphono RP(=O)(OH)2 Phosphono group phosphono- substituent phosphonic acid Benzylphosphonic acid
Benzylphosphonic acid
Phosphate Phosphate ROP(=O)(OH)2 Phosphate group phosphonooxy-
or
O-phosphono- (phospho-)
substituent phosphate Glyceraldehyde 3-phosphate
Glyceraldehyde 3-phosphate (suffix)
Phosphocholine
O-Phosphonocholine (prefix)
(Phosphocholine)
Phosphodiester Phosphate HOPO(OR)2 Phosphodiester [(alkoxy)hydroxyphosphoryl]oxy-
or
O-[(alkoxy)hydroxyphosphoryl]-
di(substituent) hydrogen phosphate
or
phosphoric acid di(substituent) ester
DNA
O‑[(2‑Guanidinoethoxy)hydroxyphosphoryl]‑L‑serine (prefix)
(Lombricine)
